Electrically “selectable” 2WD/4WD and dualmode rear differential system allow easy changing between drive systems to suit changing terrain and applications.
If cargo capacity is your greatest priority, then the MULE PRO-DX is your partner of choice. Its cargo bed is the largest in its class, ensuring you can carry more, and carry it more easily.
Multi-function display built into the dash is standard on all models.
In addition to on-site fuel compatibility, the high-torque three-cylinder diesel engine of the MULE PRO-DXT and PRO-DX offers excellent performance for hauling loads, as well as easy low-speed control. Vehicle top speed is up to 30 mph.

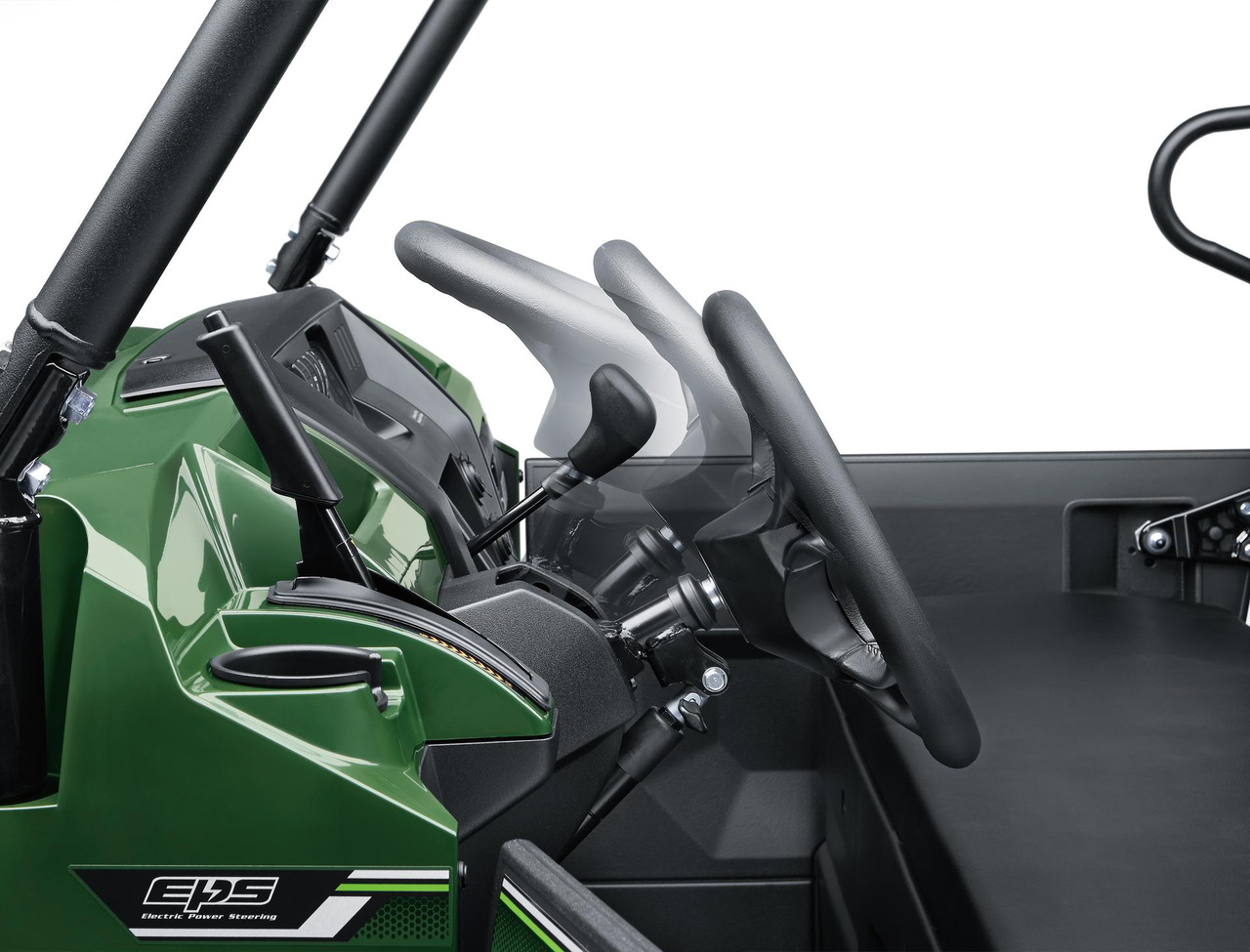

Steering wheel has a stepless adjustability range of approximately 34o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle.
Front and rear disc brakes ensure strong, sure stopping power. The hydraulic disc system offers predictable performance, delivering brake power that matches input at the brake pedal.
The MULE PRO-DXT and PRO-DX combine a wide-body chassis with a 2,345 mm wheelbase. This contributes to riding stability and comfort, while offering easy operability and manoeuvrability. The rugged frame construction ensures great durability as well as superb handling.
Designed to reflect their tough construction and strong performance, the MULE PRO-DXT and PRO-DX feature rugged, no-nonsense styling similar to that found on high-quality pickup trucks.
Dual 55/60 W headlights and standard LED lights cut a bright path through the dark for clear visibility on night rides.
The MULE PRO-DX has the capacity to allow a maximum of one passenger to join the driver for work and leisure activities.
Gas-assisted tilting cargo bed facilitates accessing the engine.
Kawasaki’s high-grade electric power steering (EPS) system works best when you need it most: at extremely slow speed and when stopped.
| Engine type | Liquid-cooled, 4-stroke, three-cylinder |
|---|---|
| Compression ratio | 23.5:1 |
| Valve system | OHV, 6 valves |
| Bore x stroke | 74.0 x 77.0 mm |
| Displacement | 993 cm³ |
| Fuel system | Fuel injection with in-line |
| Lubrication | Forced lubrication, wet sump |
| Starting System | Electric |
| Maximum power | 17.8 kW {24 PS} / 3,600 rpm |
|---|---|
| Maximum torque | 52.1 N•m {5.3 kgf•m} / 2,400 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary Reduction Ratio | 3.334 ~ 0.756 |
| Final drive | Shaft 2WD/4WD, dual-mode differential |
| Final reduction ratio | 6.382 (31/17 x 35/10) - 6.245 (31/21 x 55/13) |
| Frame type | Tubular double-cradle, high-tensile steel |
|---|---|
| Rake | 4.4 ° |
| Wheel travel front | 222 mm |
| Wheel travel rear | 217 mm (left 217 mm , right 220 mm) - GB |
| Tyre, front | 26 x 9.00-12 4PR |
| Tyre, rear | 26 x 11.00-12 4PR |
| L x W x H | 3,385 x 1,625 x 1,965 mm |
| Steering angle L/R | 40° / 31° (43° in - 38° out) - GB |
| Wheelbase | 2,345 mm |
| Ground clearance | 265 mm |
| Fuel capacity | 30.0 liter |
| Seat height | 885 mm |
| Curb mass* | 845 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 810 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Parking Brake | Dual discs (mechanical) |
|---|---|
| Brakes, front | Dual discs |
| Front brake caliper type | Dual-piston |
| Brakes, rear | Dual discs |
| Rear brake caliper type | Single-piston |
| Suspension, front | Double wishbone |
| Suspension, rear | Double wishbone |
Part Number: 022CAT0020D – Hard Cabin with Heater for MULE PRO-DX.
Includes: Glass Windscreen, Plastic Roof, Polycarbonate Rear Panel, Polycarbonate Doors (side windows no longer included), Wiper and Washer Kit, and Heater Kit.
Structure made of high-grade steel with quality black finish. Flip-up tinted single-layer safety glass windscreen with rubber seals and locks.
The doors are equipped with hydraulic stoppers and automotive-style locks.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
One of our most popular accessories for a good reason.
This item cannot be combined with a windscreen.
Caution: An enclosed trailer is recommended when transporting a vehicle with a Soft Roof installed.
Hard Cabin complete kit for Mule PRO DX and FX
Includes:

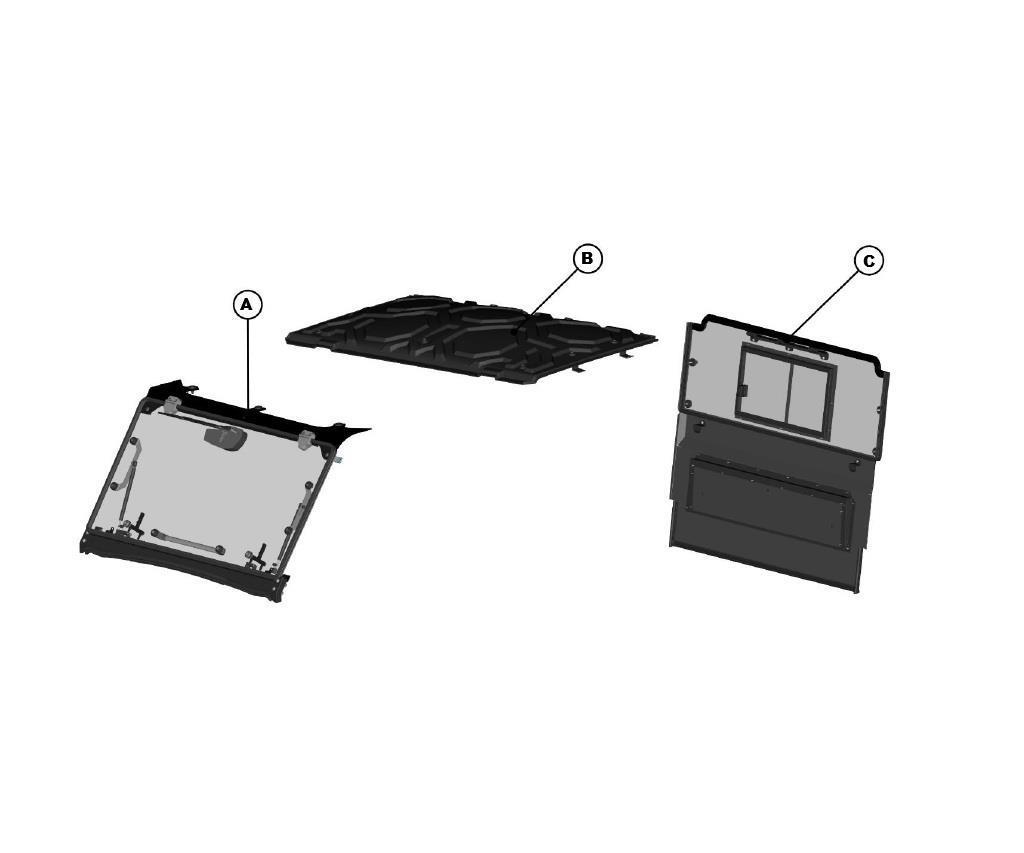

Part Number: 022CAT0022C – Half Cabin Kit for MULE PRO-DX.
Includes: Glass Windscreen, Wiper and Washer Kit, Plastic Roof, and ABS with Polycarbonate (PC) Rear Panel.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Part Number: 022CAT0042A: Half Cabin for MULE PRO-DXT.
Includes: Glass Windscreen + Wiper and Washer Kit+ Steel Roof + Steel with Polycarbonate (PC) Rear Panel
Modular Parts:
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Part Number: 42S05U01S30: Steel Roof Panel for MULE PRO-DXT.
Modular Parts:
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Part Number: 022CAT0040C : Hard Cabin complete kit for DXT.
Includes: Glass Windscreen + Wiper and Washer Kit + Steel Roof + Steel with Polycarbonate (PC) Rear Panel + PC Doors with Glass Fixed Windows + Heater Kit (Accessory Fuse Kit recommended)
Structure made of high grade steel with quality black finish. Flip-up tinted single layer safety glass windscreen with rubber seals and locks.
The doors are equipped with hydraulic stoppers, automotive style locks and sliding safety glass side windows.
Clear sliding window partition between front and rear seats allows complete cab enclosure whether in 2 or 4 passenger mode. Available in packages and as modular parts.
Modular Parts:
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows (Discontinued).
Part Number: 42S05U03S40 – Door Panel Set - Left (2 Pieces) for MULE PRO-DXT.
Modular Parts:
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows .
Part Number: 42S05U03S50– Door Panel Set - Right (2 Pieces) for MULE PRO-DXT.
Modular Parts:
Image shown is 022CAT0040 Hard Cabin Kit for MULE PRO-DXT with Doors with Sliding Windows .
Maximize cargo space with this durable, black-finished plastic bed extender—designed to latch securely and work seamlessly with your vehicle.
Increase bottoming resistance when carrying a heavy load and/or when using heavy accessories such as a Hard Cabin.
Part Number: 022CAT0044 – Wiper Set for MULE PRO-DX/DXT.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Part Number: 022CAT0045 – Washer Set for MULE PRO-DX/DXT.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Supplied as a pair (front) with all fixings included, these hardwearing -SBR*- mats feature a honeycomb surface design to ensure high levels of grip in all conditions, model specific full coverage fitment and Mule logos. Due to their nature of rubber, they can reduce noise levels.
*SBR: styrene-butadiene rubber
3D curved safety glass provides increased field of view
Can also be used in combination with the Hard Cabin for Mule Pro-MX and Mule SX. Unfortunately not in combination with the Mule Pro-DX & DXT hard cabin, with roof.
Complete windscreen kit for Kawasaki Mule DX with windscreen wiper and washer system. Provides optimum visibility when driving in rain, snow, and dirty conditions.
Package:
022CAT0043A: Windscreen + Wiper + Washer
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Part Number: 42S08U01S02 – Heater Assembly for MULE PRO-DX/DXT.
Modular Parts:
3D curved safety glass provides increased field of view.
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
