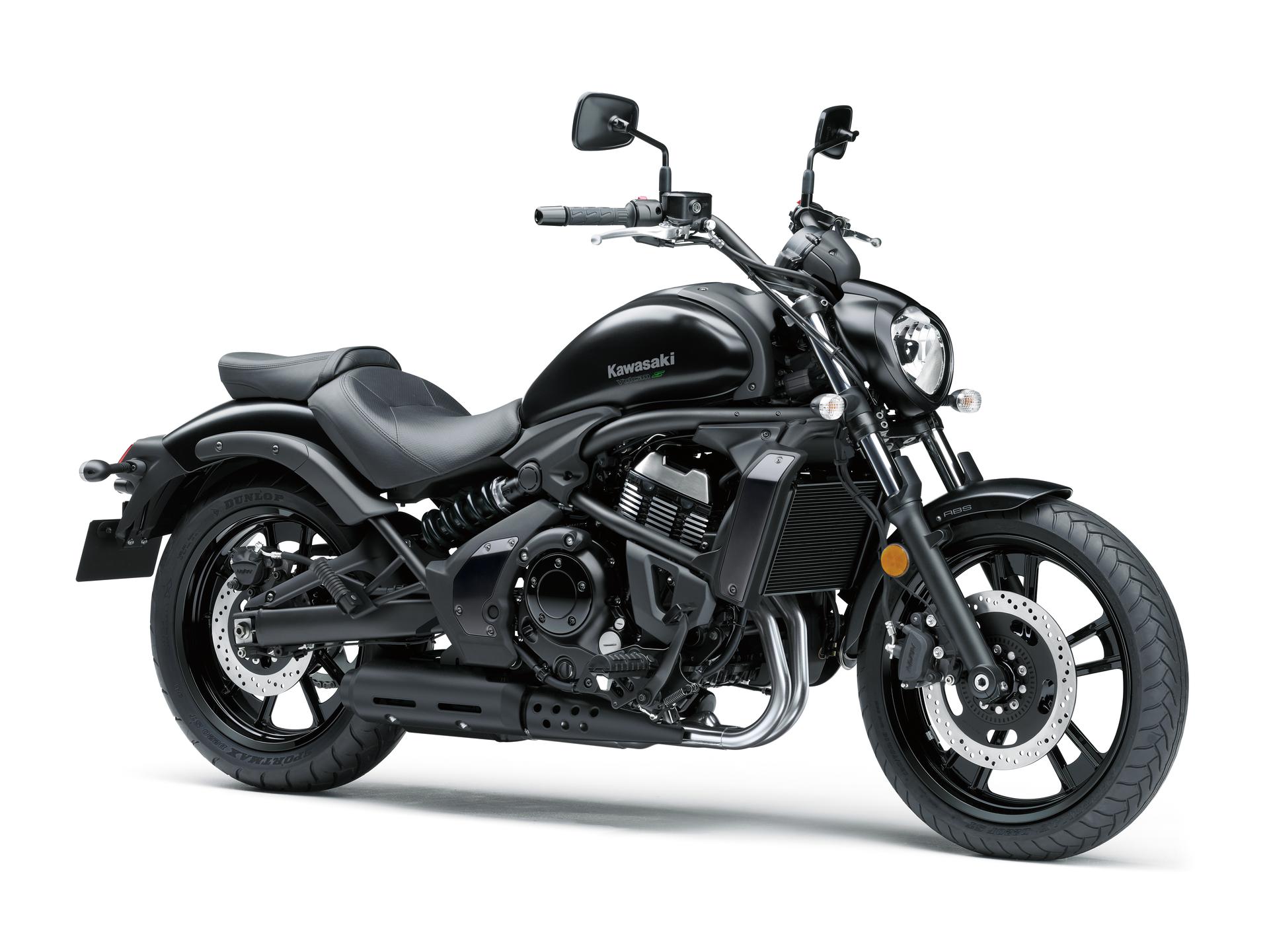

Colours
Edition Accessories
Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability.
Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.
Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.
Multi-position levers allow riders to adjust lever position to suit hand size and preference.
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.
3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.
Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.
Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.
Sculpted seat design with thick padding offers excellent comfort and good hip support.
The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.
Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.
Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
Dual Throttle Valves offer increased power and greater ease of use care of a second set of ECU-controlled throttle valves.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 10.8:1 |
| Valve system | DOHC, 8 valves |
| Bore x stroke | 83.0 x 60.0 mm |
| Displacement | 649 cm³ |
| Fuel system | Fuel injection: 38 mm x 2 |
| Lubrication | Forced lubrication, semi‑dry sump |
| Starting System | Electric |
| Ignition System | Battery & Coil (transistorised ignition) |
| Maximum power | 44.7 kW {61 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 62.4 N•m {6.4 kgf•m} / 6,600 rpm |
| CO2 emission | 104 g/km |
| Fuel consumption | 4.5 l/100km |
| CO2 emission 35 kW kit | 102.0 g/km |
| Fuel consumption 35 kW kit | 4.4 l/100km |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary Reduction Ratio | 2.095 (88 / 42) |
| Gear Ratios 1st | 2.438 (39 / 16) |
| Gear Ratios 2nd | 1.714 (36 / 21) |
| Gear Ratios 3rd | 1.333 (32 / 24) |
| Gear Ratios 4th | 1.111 (30 / 27) |
| Gear Ratios 5th | 0.966 (28 / 29) |
| Gear Ratios 6th | 0.852 (23 / 27) |
| Final drive | Sealed chain |
| Final reduction ratio | 3.067 (46 / 15) |
| Frame type | Trellis, high-tensile steel with swingarm mounting plate |
|---|---|
| Rake | 31.0 ° |
| Trail | 120 mm |
| Wheel travel front | 130 mm |
| Wheel travel rear | 80 mm |
| Tyre, front | 120/70 R18 M/C 59H |
| Tyre, rear | 160/60 R17 M/C 69H |
| L x W x H | 2,310 x 880 x 1,100 mm |
| Steering angle L/R | 35° / 35° |
| Wheelbase | 1,575 mm |
| Ground clearance | 130 mm |
| Fuel capacity | 14.0 liter |
| Seat height | 705 mm |
| Curb mass* | 229 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 215 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Brakes, front | Single disc |
|---|---|
| Front Brake Diameter | Ø 300 mm |
| Front brake caliper type | Dual-piston |
| Brakes, rear | Single disc |
| Rear Brake Diameter | Ø 250 mm |
| Rear brake caliper type | Single-piston |
| Suspension, front | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Suspension, rear | Laydown offset single-shock, linkage equipped, and 7-way spring preload adjustability |
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty.
Expandable feature adds 7cm of storage capacity.
Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports.
Reflective piping, front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish.
Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20L
L=43 W=28 H=15-22cm
Do not use on semi-gloss or matt/flat finish fuel tank surfaces

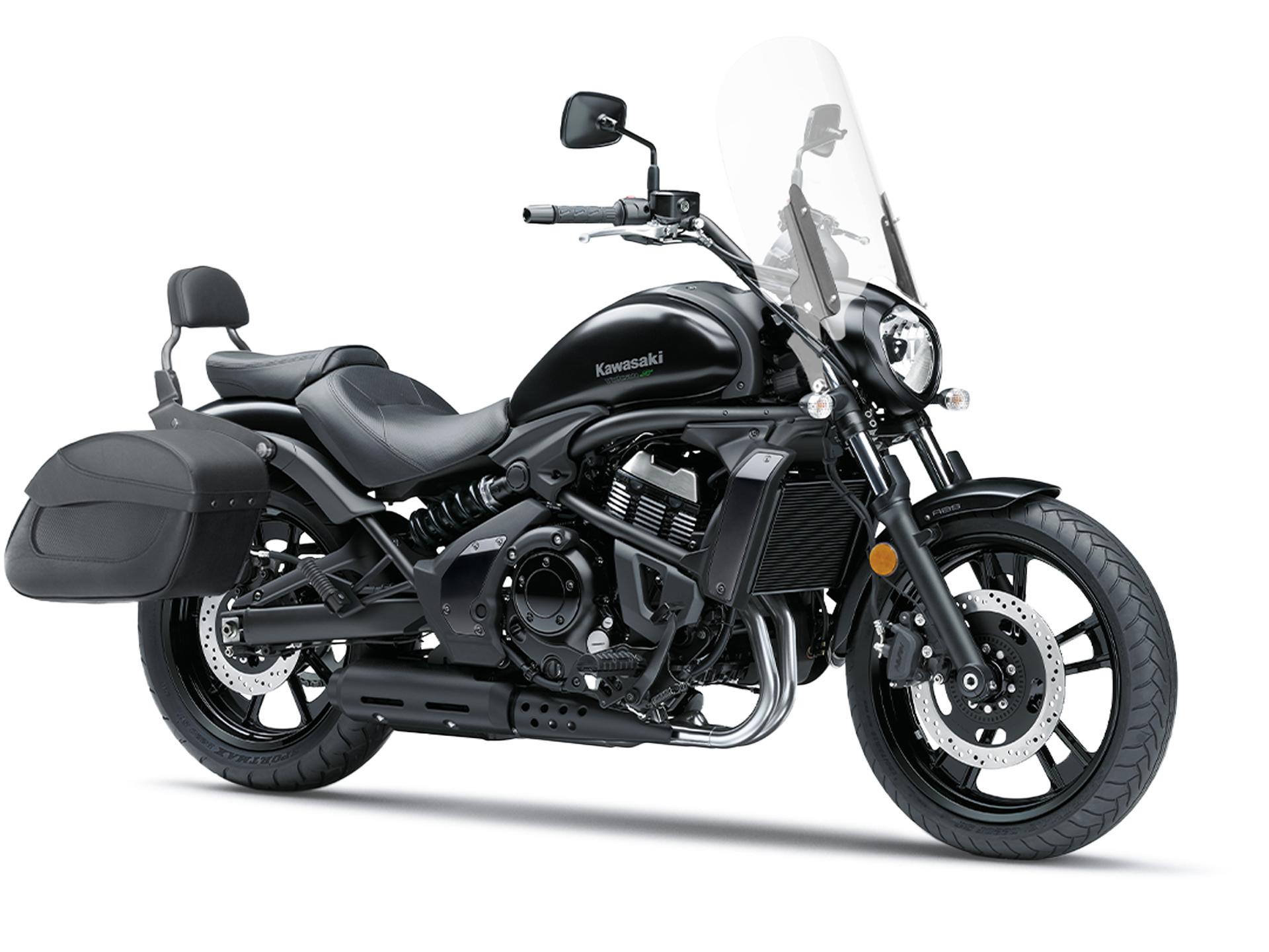

Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Quick release system inside the bag allows bags to be removed from the support easily without tools.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
KQR mounting system allows for easy installation of KQR Saddlebags once installed.
Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm
The KQR Saddlebag Kit consists of 3 components:
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
(Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm)
The Fixed Saddlebag Kit consists of 2 components:
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included.
20cm (8") long and 23cm (9") wide.
The Passenger Luggage Rack installation requires 2 components:
Large Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
Medium Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
Large KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
Medium KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
ERGO-FIT™ Reduced Reach.
Suggested for riders shorter than 170cm.
A combination of adjustable factory components and accessories reduce the reach to handlebars and footpegs for the best possible fit.
ERGO-FIT™ Extended Reach.
Suggested for riders taller than 183cm.
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
Luggage Rack Chrome (Option for KQR backrest)
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling.
Securely mount this luggage rack to your rear fender for extra cargo capacity.
Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S.
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
Comfortable extended reach rear seat designed to be combined with extended reach front seat.
Front section is adapted to create more room for rider.
Padding is thicker for increased comfort. Including bracket.
Extended passenger seat must be combined with extended reach rider seat
18-21L Rear Bag. Replaces the passenger seat.
Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear seat and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid.
L=45, W=25, H=20-28cm
Note: Do not use on satin, semi-gloss, or flat finish bodywork surfaces
The universal GPS package allows various installation options without using additional accessories. Navigation system can be mounted in the bag, or directly to the system without bag. Mounting on mirror or handlebar (22,28-25,4mm), or to other mounting points with ball M6 or M8 and rotatable RAM-Arm. Splash proof navigation bag size M protects your GPS from the weather.
Included:
Relay kit for Vulcan S lightbar/sub lamp, 12V outlet, Gear position indicator or other electrical accessories.
Relay is needed only one time when multiple electrical accessories are fitted. (Only one Relay Kit required per Vulcan S)
Solid, easy to install bracket for your navigation system.
Fits most common current navigation systems.
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celsius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
