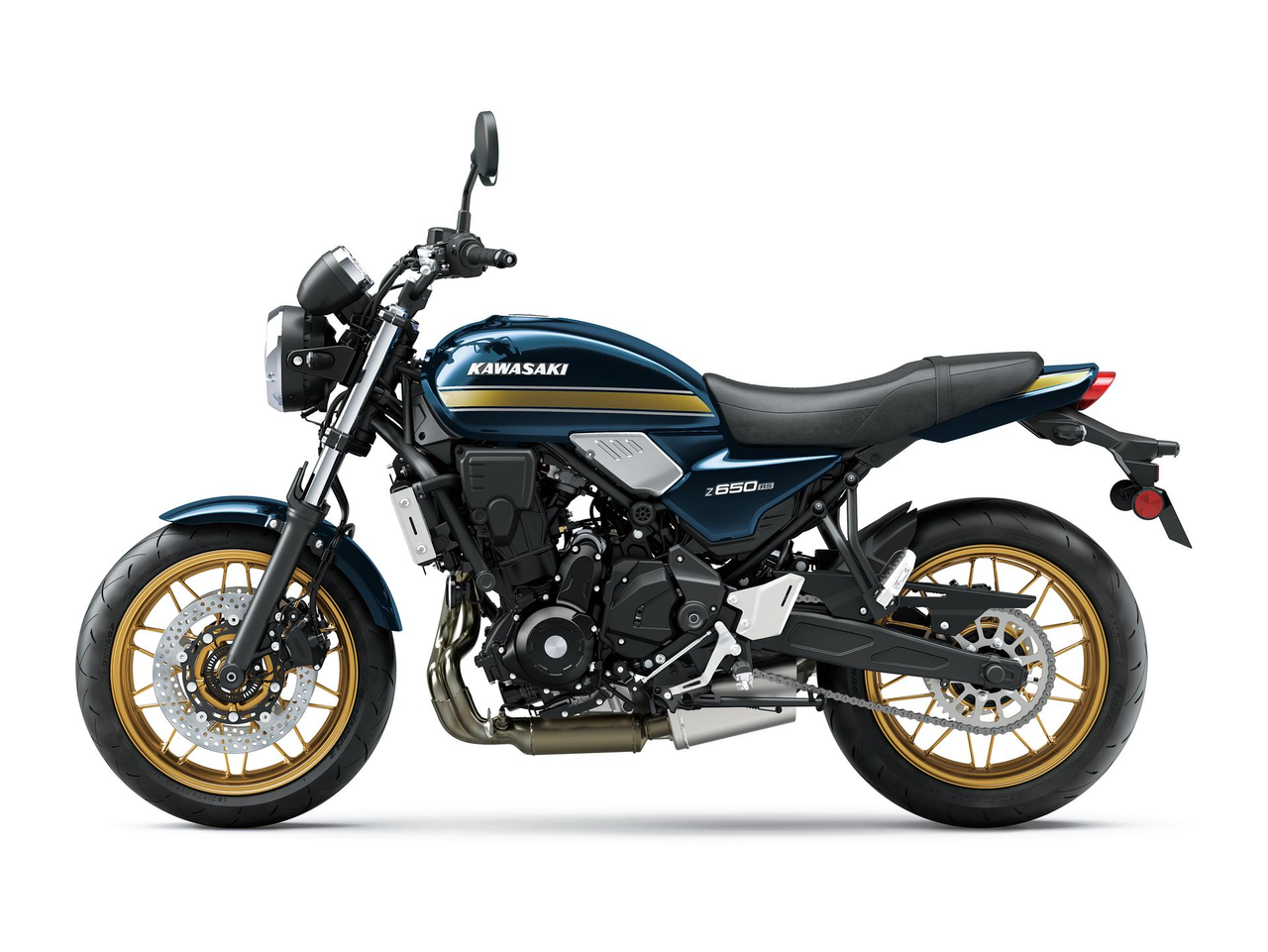

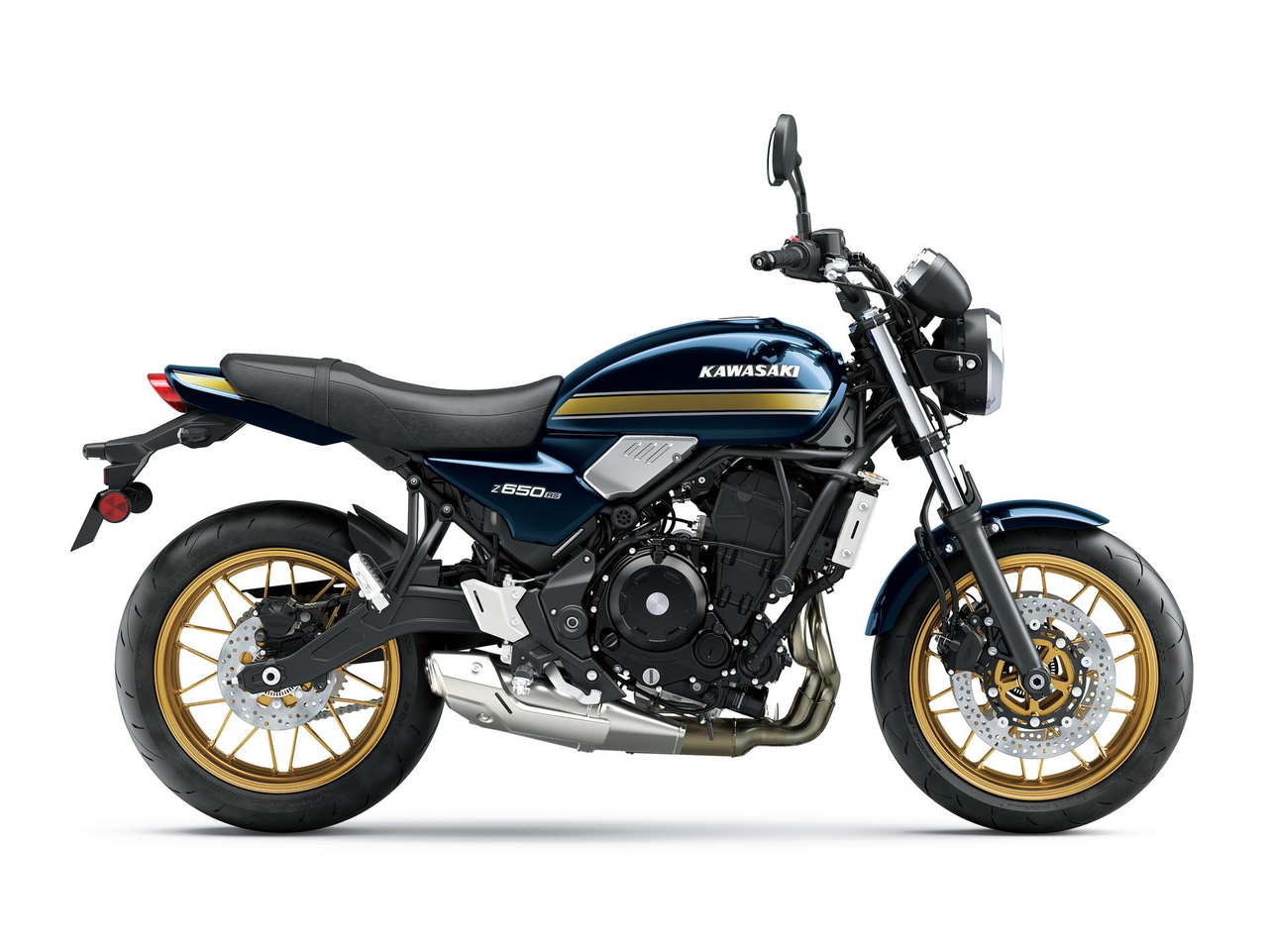

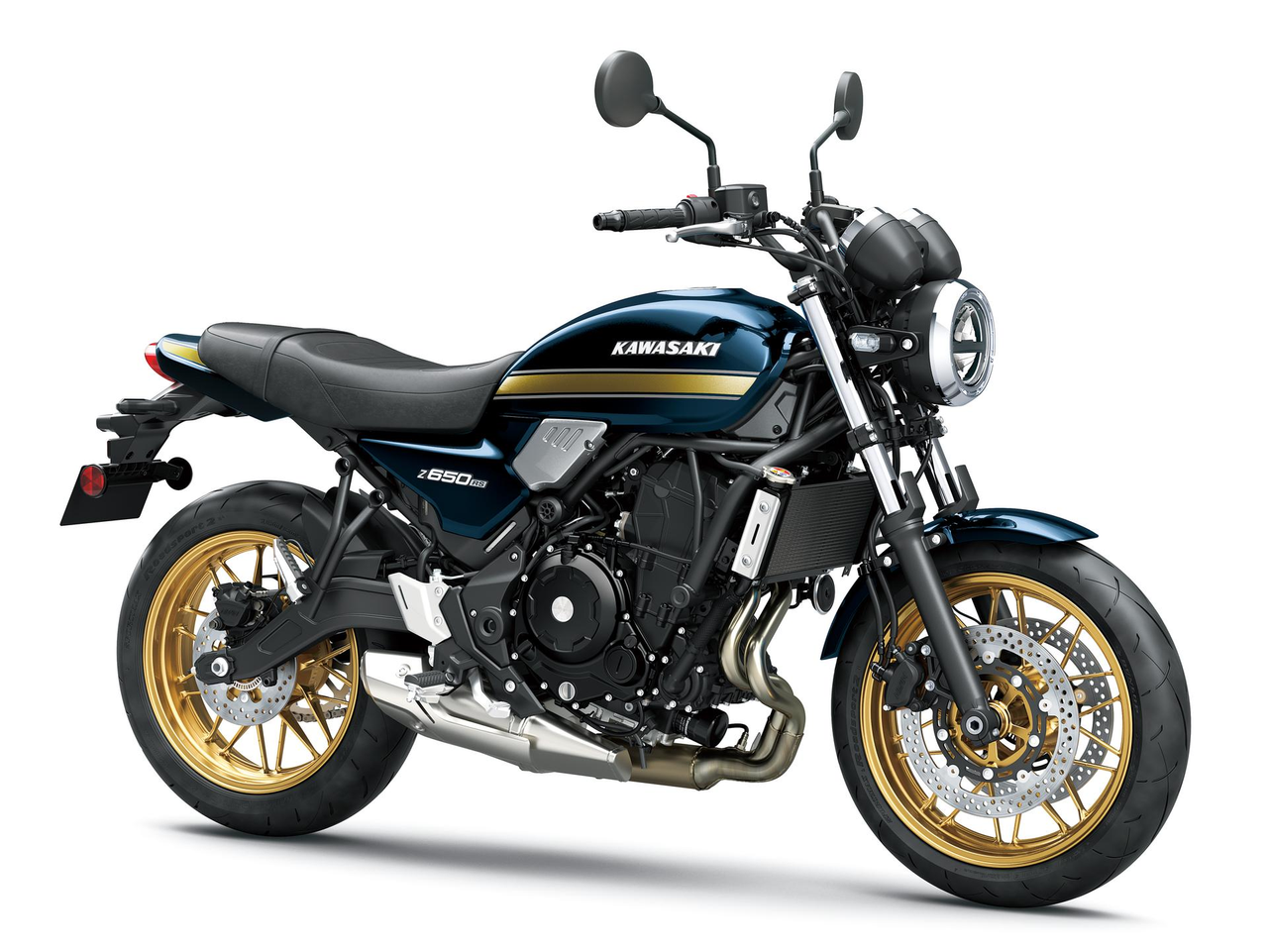

Featuring the same exciting 649 cm3 Parallel Twin engine and slim, lightweight trellis frame as its quick and nimble Supernaked counterpart, the new Z650RS has all the right ingredients to make everyday riding a fun, enjoyable experience. Befitting a retro sport model, the overall stance is less forward-leaning, with a more upright riding position and light, natural handling.
Like Kawasaki’s retro sport Z900RS, the Z650RS features timeless good looks. As a middleweight model, a light and casual appearance reflects its rider-friendly character. The appeal of a traditional motorcycle is complemented by simple and modern design touches that allow the Z650RS to blend seamlessly into your everyday life.

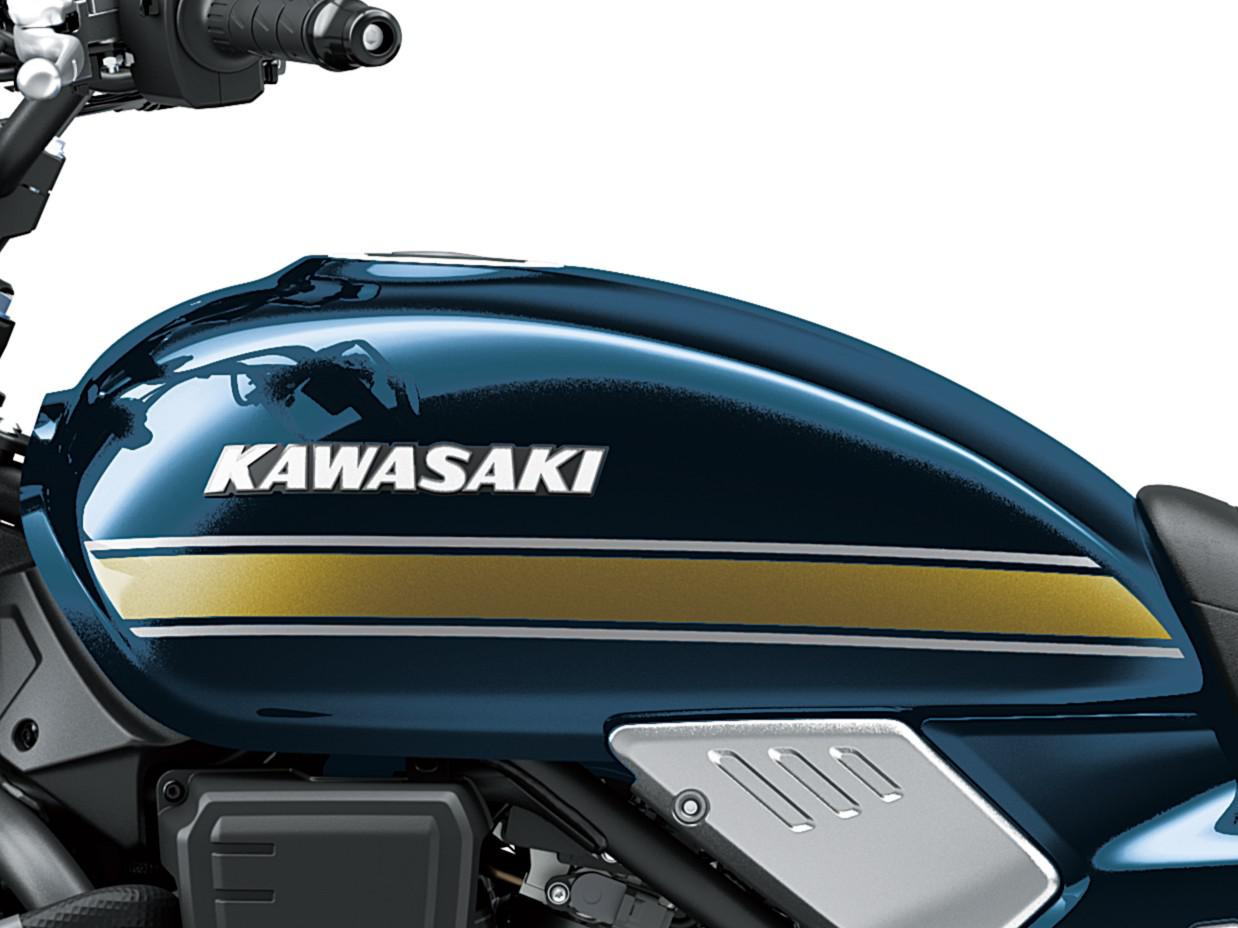

Retro-style fuel tank design uses edges dividing the top and sides of the tank to emphasize its compact size. With a volume of 12 litres, it is narrow between the knees, contributing to a slim ergonomic package.
Compared to the upswept tail of the Z650, the tail of the Z650RS traces a horizontal line, contributing to the bike’s flat stance. The tail – shorter than that of the Z900RS, which reinforces the light, casual styling theme is adorned with an LED taillight. An original-design seat adds to the retro sport image.
The combination of low weight, thanks in large part to a trellis frame that weighs a mere 13.5 kg, and suspension settings tuned for light, natural response gives the Z650RS the balanced handling you would expect from a retro sport model. It has an estimated dry weight of 174 kg.
The Z650RS’ slim design, low weight and low seat height all contribute to manoeuvrability, whether walking beside the bike, or foot paddling in a parking lot. The manageable power delivery and strong low-end torque further facilitate low-speed manoeuvring.
A slim chassis and a low seat height of 820 mm that facilitate reaching the ground enable a wide range of riders to enjoy the Z650RS with confidence.

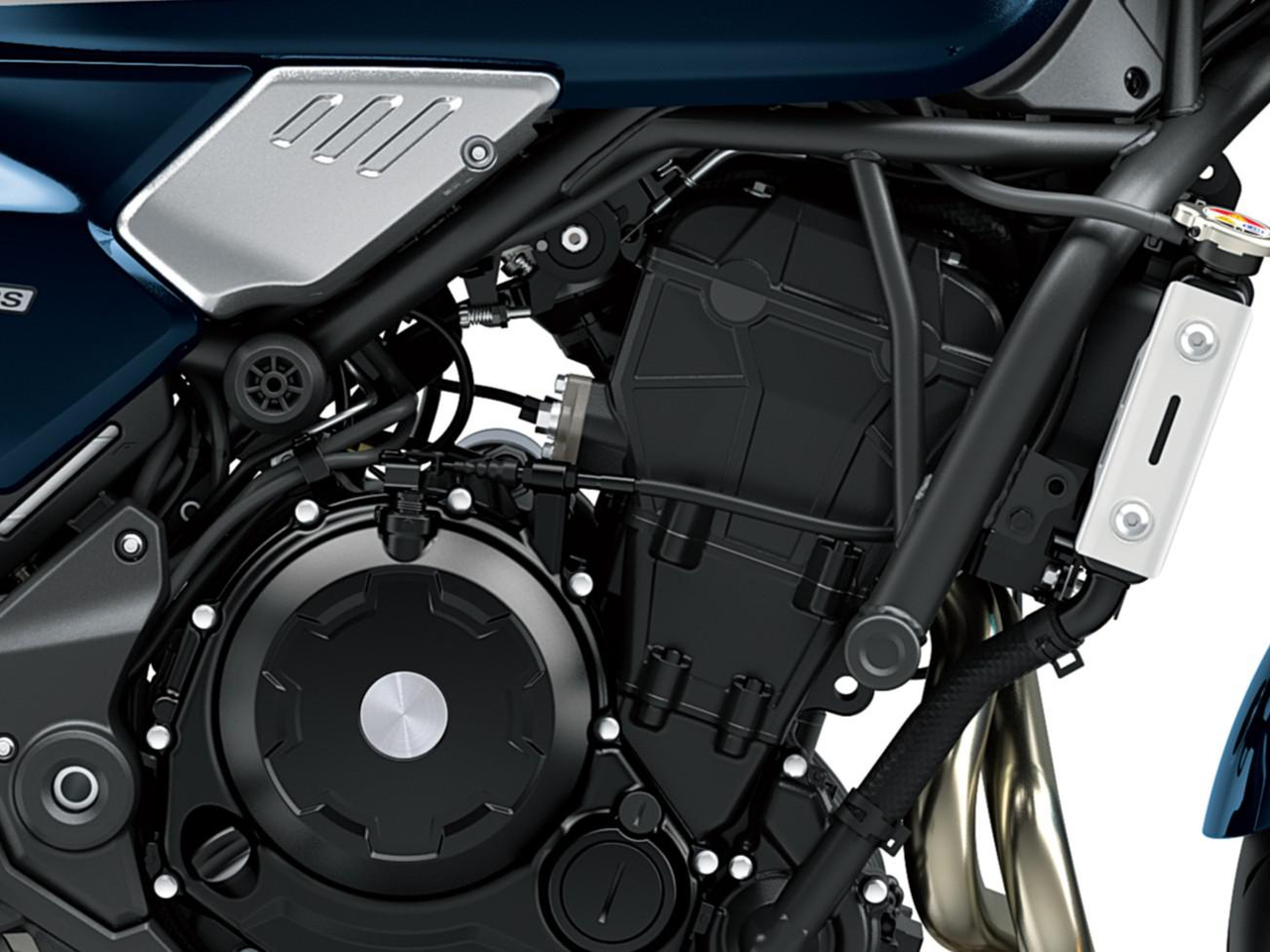

Optimised for everyday riding, the exciting Parallel Twin engine offers quick response, strong low-mid range performance and favourable fuel economy. When opening the throttle, riders will notice a smooth and powerful engine character offering both a high level of control when making minute throttle adjustments and a gratifying rush of acceleration in the lower rpm ranges.
Wide, flat handlebar and a relaxed riding position puts the rider in a natural, comfortable position that both inspires confidence and facilitates control for a wide range of riders.

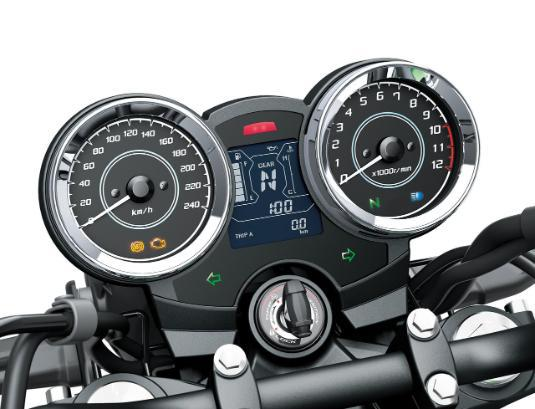

Analogue-style speedometer and tachometer dials are complemented by a multi-functional LCD screen, balancing retro-style looks with modern functionality.
A blend of retro and modern designs, the LED headlight features two chambers, both with position lamps to ensure the whole lamp appears lit, like a retro-style bulb headlight. The grooved design on the thick headlight ring adds a modern touch.
Original cast wheels like those of the Z900RS feature flat spokes designed to look like classic wire-spoked wheels. Designed using Kawasaki’s advanced analysis technology, the wheels offer a balance of light weight and stylish looks, contributing to both handling and a design suited to the retro category.
Each of the Z650RS’ colour variations features distinct styling, catering to a wide range of tastes.
Dual Ø 300 mm front disc brakes and Ø 220 mm rear deliver plenty of braking power. The round discs contribute to the bike’s retro sport image.

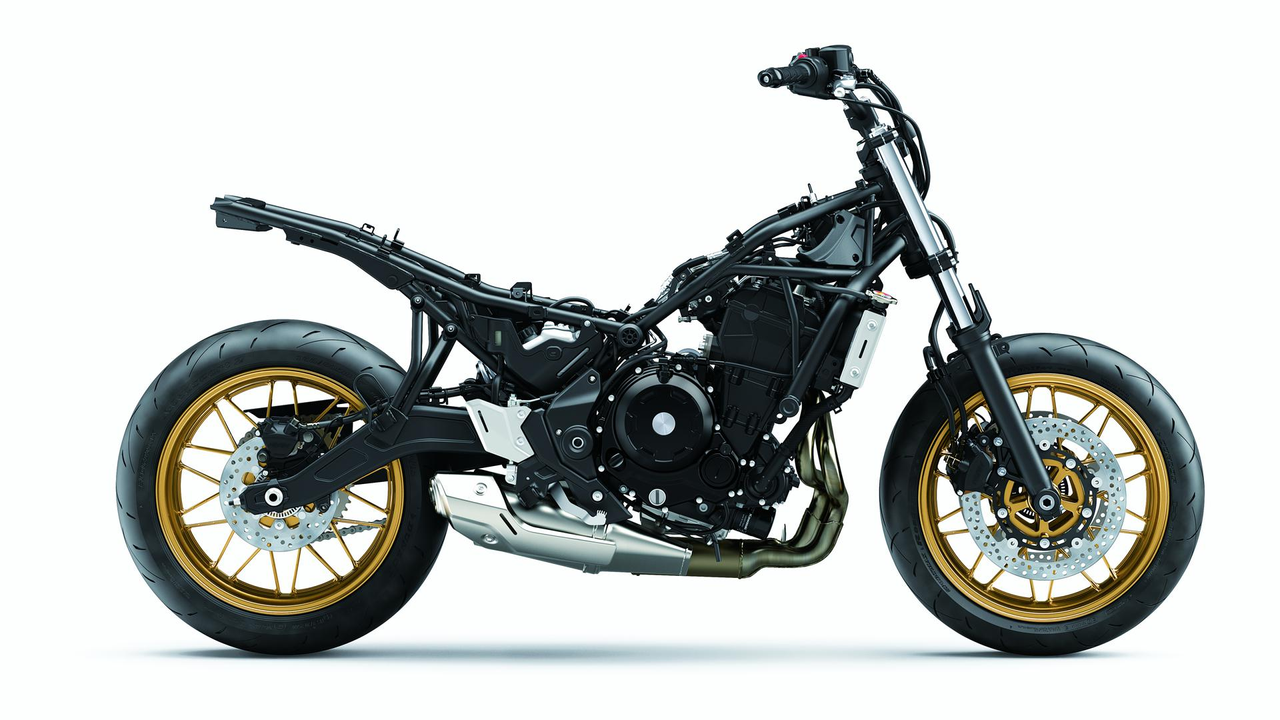

One of the key contributors to the Z650RS’ light weight (noticeable as soon as the bike is lifted off its sidestand) is its innovative trellis frame. Weighing 13.5 kg, it contributes significantly to the bike’s light, natural handling.

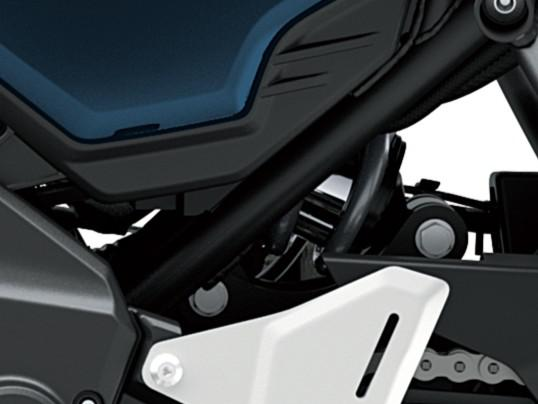

Horizontal Back-link rear suspension offers a progressive character. Compared to link-less type suspension, it delivers a better balance of sporty performance and ride comfort.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Dual Throttle Valves offer increased power and greater ease of use care of a second set of ECU-controlled throttle valves.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 10.8:1 |
| Valve system | DOHC, 8 valves |
| Bore x stroke | 83.0 x 60.0 mm |
| Displacement | 649 cm³ |
| Fuel system | Fuel injection with dual throttles: 36 mm x 2 |
| Lubrication | Forced lubrication, semi‑dry sump |
| Starting System | Electric |
| Ignition System | Digital |
| Maximum power | 50.2 kW {68 PS} / 8,000 rpm |
|---|---|
| Maximum torque | 64.0 N•m {6.5 kgf•m} / 6,700 rpm |
| CO2 emission | 107 g/km |
| Fuel consumption | 4.4 l/100km |
| CO2 emission 35 kW kit | 107.0 g/km |
| Fuel consumption 35 kW kit | 4.5 l/100km |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary Reduction Ratio | 2.095 (88/42) |
| Gear Ratios 1st | 2.438 (39/16) |
| Gear Ratios 2nd | 1.714 (36/21) |
| Gear Ratios 3rd | 1.333 (32/24) |
| Gear Ratios 4th | 1.111 (30/27) |
| Gear Ratios 5th | 0.966 (28/29) |
| Gear Ratios 6th | 0.852 (23/27) |
| Final drive | Sealed chain |
| Final reduction ratio | 3.067 (46/15) |
| Frame type | Perimeter, steel |
|---|---|
| Rake | 24.0 ° |
| Trail | 100 mm |
| Wheel travel front | 125 mm |
| Wheel travel rear | 130 mm |
| Tyre, front | 120/70 ZR17 M/C (58W) |
| Tyre, rear | 160/60 ZR17 M/C (69W) |
| L x W x H | 2,065 x 800 x 1,115 mm |
| Steering angle L/R | 35° / 35° |
| Wheelbase | 1,405 mm |
| Ground clearance | 125 mm |
| Fuel capacity | 12.0 liter |
| Seat height | 820 mm |
| Curb mass* | 187 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 174 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Brakes, front | Dual discs |
|---|---|
| Front Brake Diameter | Ø 300 mm |
| Front brake caliper type | Dual-piston |
| Brakes, rear | Single disc |
| Rear Brake Diameter | Ø 220 mm |
| Rear brake caliper type | Single-piston |
| Suspension, front | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Suspension, rear | Horizontal Back-link with spring preload adjustability |
